Bosch IDS Edge vs. Edge Max Heat Pumps for NH Homes
Bosch IDS Edge and Edge Max bring a compact, side-discharge heat pump option to homeowners comparing heating and cooling systems in New Hampshire. The difference is not just the cabinet shape: this platform can serve a centrally ducted system or a compatible multi-zone arrangement. Here is what to know before choosing equipment for your home.
What are Bosch IDS Edge and Edge Max heat pumps?
Edge and Edge Max belong to Bosch's Inverter Ducted Split, or IDS, family. Bosch identifies both as systems built with VRF technology. VRF means variable refrigerant flow: the system can adjust refrigerant delivery as demand changes rather than relying only on full-output on/off operation.
You may hear this approach described as mini-VRF. It does not mean every installation uses a wall-mounted mini-split head. Bosch lists single-zone pairings with IDS Premium air handlers, cased coils and furnaces, plus compatible ducted and ductless indoor options for multi-zone designs. The approved equipment combination determines the layout. See Bosch's IDS Edge platform overview.
Edge vs. Edge Max: the cold-weather difference
For a New Hampshire project, low-temperature heating output deserves as much attention as a cooling-efficiency rating. Bosch's August 2026 specifications describe these differences:
- IDS Edge: listed heating operation down to -13°F, with up to 83% heating capacity at 5°F.
- IDS Edge Max: listed heating operation down to -22°F, with up to 100% heating capacity at 5°F.
These are manufacturer-stated capabilities, not a promise that every combination will cover every home's winter heating load. Operating at a low temperature is different from delivering enough heat at that temperature. The selected outdoor unit, indoor equipment and design conditions must be checked together. Source: Bosch's Edge specifications and Edge Max specifications, product features and performance data.
Ducted, ductless or a combination?
Start with the rooms you want to condition and the distribution system already in place. A house with usable ductwork presents a different design problem from an addition with no ducts or an upstairs that never reaches the thermostat setting.
The Edge family gives us another platform to evaluate alongside other Bosch heating and cooling equipment. A centrally ducted replacement may suit one project; compatible zoned indoor units may suit another. Indoor-unit placement, airflow and controls should be part of the proposal, not decisions left until installation day.
What matters when planning an installation in Southern NH?
- The home's heat loss: compare the equipment's cold-weather output with the building's heating needs.
- Room-by-room comfort: identify rooms with different schedules, sun exposure or persistent temperature problems.
- Existing equipment: establish which ductwork, furnace or other components can remain in the proposed configuration.

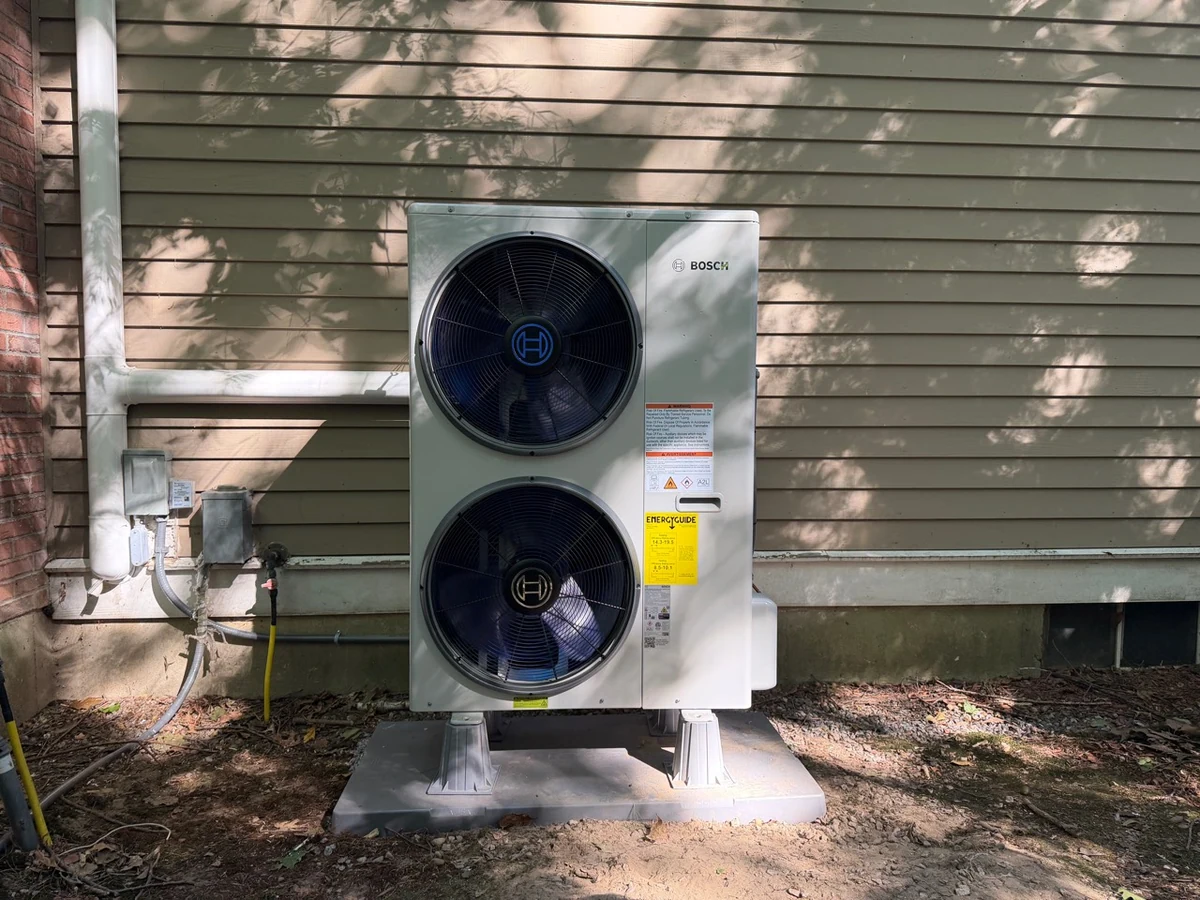

- The outdoor location: plan service access, required clearances and a suitable location for winter conditions.
- Backup heat and operating cost: discuss the heating plan for the coldest weather and compare costs using your actual fuel and electricity rates.
Our heat-pump cost comparison can help frame the operating-cost discussion. A model name alone cannot tell you what your particular home will cost to heat.
Is Edge Max the right choice for your home?
Edge Max is worth evaluating when cold-weather heat output is a priority, but the right answer still depends on the complete system design. Ask for the exact outdoor and indoor model numbers, the matched-system performance information and a clear explanation of any backup heat.
A.J. LeBlanc Heating can help you compare options for your Southern New Hampshire home. Explore our mini-split installation services or request an estimate to discuss Bosch Edge, Edge Max and other suitable heat-pump systems.
